Außen-Terminalbox für 10 Paare für STB-Modul, 257x204x90mm, Schraub-Snap-Verriegelung, Kunststoffgehäuse, mit STB-Modul und Überspannungsschutz

punkt nr.: TP-1714-10MG
Diese Terminalbox wird verwendet, um Kabel von sekundären Telefonnetzwerken zu den Kabelpaaren von Abonnentenleitungen zu beenden.
  • Farbe: Grau
  • Marke: Neutral / OEM / TAEPO
  • Verpackung: 1 Stück/Box, 20 Boxen/ctn, Bruttogewicht 13 kg/ctn, 604550 cm/ctn
  • MOQ: 1000 Stück
  • Lieferung: 15-30 Tage
  • beschreibung

    TAEPO - Ihre professionelle Quelle für Terminalboxen für 10 Paare für STB-Module mit Überspannungsschutz, chinesische Fertigungsexpertise in Bestform!
    Was ist eine Terminalbox für STB-Module?



        BESCHREIBUNGEN


    Outdoor 10 pairs terminal box (TP-1714-10MG) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

    The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

    It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

    • The surge voltage caused by lightning on or around the outside lines.
    • The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
    • The outside line directly collides against a 220 V power line.


    It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

    The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.





        HAUPTMERKMALE


    • Insulation Displacement Connection
    • No wire-stripping, screw and solder free
    • Reliable connections
    • Clear labeling
    • Modular design and installations
    • Gas tight connection
    • One push wire insertion
    • Robust long-term environmental stability
    • Flexible indoor and outdoor use
    • Wall or pole mountable
    • Quick mounting and installation




        SCHALTPLÄNE


    Zeichnung für Außen-Terminalbox für 10 Paare für STB-Modul mit Überspannungsschutz



        ABBILDUNGEN

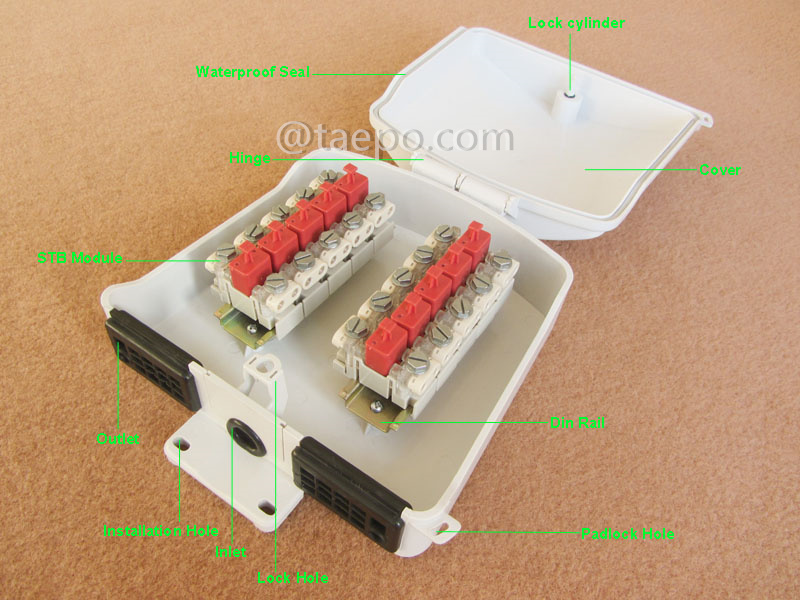

    Illustrationsbilder für Außen-Terminalbox für 10 Paare für STB-Modul mit Überspannungsschutz


        VERPACKUNGSBILDER


    Verpackungsbilder für Außen-Terminalbox für 10 Paare für STB-Modul mit Überspannungsschutz



        BESTELLDATEN     Artikelnummer

    Beschreibungen
    TP-1714-10MG Außen-Terminalbox für 10 Paare für STB-Modul, 257x204x90mm, Schraub-Snap-Verriegelung, Kunststoffgehäuse, mit STB-Modul und Überspannungsschutz
