Verteilerbox für 30 Paare für LSA-Modul, 152x105x56mm, Schnappverschluss, Kunststoffgehäuse, mit Rückmontagerahmen, ohne LSA-Modul

TAEPO - Spezialisiert auf Verteilerboxen für LSA-Module, Ihr professioneller chinesischer Fertigungspartner!
Wofür wird eine Verteilerbox für LSA-Module verwendet?


    BESCHREIBUNGEN

30 pair DP box (TP-1706-30) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
This 30 pair dp box can be installed with 10 pairs LSA disconnection module ( you can visit details here  ) is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. This module adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

    HAUPTMERKMALE

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Wall or pole mountable
• Quick mounting and installation

    INSTALLATIONSVIDEOS

    SCHALTPLÄN

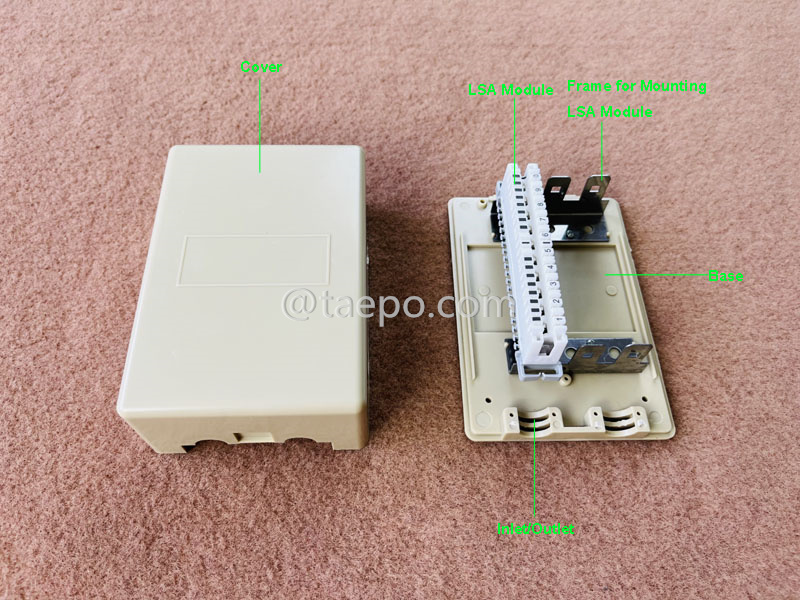

    ABBILDUNGEN

    VERPACKUNGSBILDER

    BESTELLDATEN
