IDC Mehrzweck-Schlagwerkzeug für STG-Modul und LSA-Modul

TAEPO - Ihre professionelle Quelle für das IDC Multi-Impact-Insertion Tool für STG Modul und LSA Modul, beste chinesische Fertigung.
Was macht das IDC Multi-Impact-Insertion Tool?


   BESCHREIBUNGEN

TP-5908 impact insertion tool is available for all applications where a large number of single wires must be distributed or connected.
Advantage: no insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.

The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required - a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.

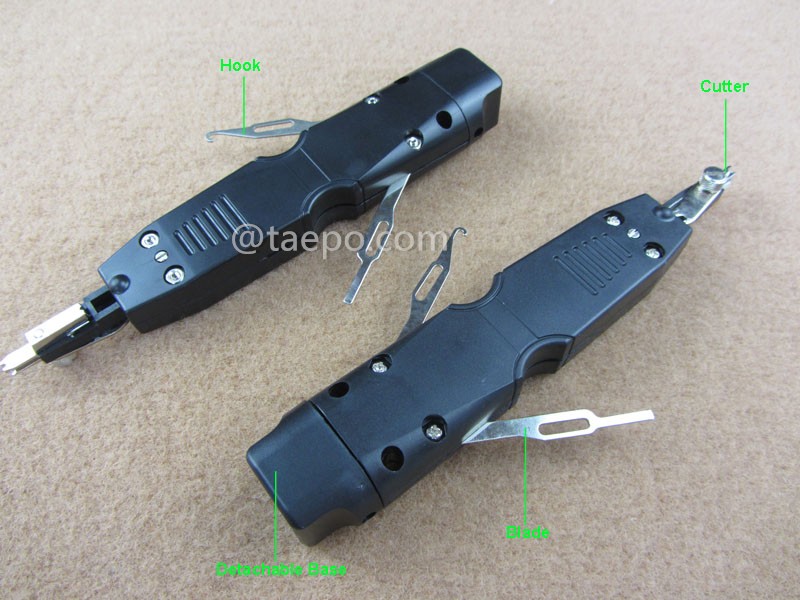

The hook can be used to remove connected wires from the contact or 1-pair MDF protectors from the module. The hook is also designed for removing GDT arresters from the over-voltage protection magazine.

The blade head is used for connecting LSA krone module ( you can visit details here  )  at one side and by changing the oppsite direction of the blade head for connecting STG pouyet module ( you can visit details here  ).

   HAUPTMERKMALE

• Insulation Displacement Connection (IDC)
• Easy operation
• Long life use
• no insulation removal, no use of screws
• no soldering - extremely fast working on-site with integrated contact safety.
