Außen-Abonnentenanschlussmodul für 1 Paar für STB-Modul, 91x46x51mm, Schnappverschluss, Kunststoffgehäuse, mit STB-Modul mit Überspannungsschutz

punkt nr.: TP-1710-1MG
Diese Abonnentenanschlusseinheit wird zur Beendigung von Kabeln von sekundären Telefonnetzwerken zu den Kabelpaaren von Abonnentenleitungen verwendet.
  • Farbe: Grau
  • Marke: Neutral / OEM / TAEPO
  • Verpackung: 1 Stück/Verpackung, 200 Verpackungen/Box, Bruttogewicht 18,5 kg/Box, 564026 cm/Box
  • MOQ: 5000 Stück
  • Lieferung: 15-30 Tage
  • beschreibung

    TAEPO - Ihre professionelle Quelle für das 1-Paar-Abonnentenanschlussmodul für das STB-Modul, exzellente chinesische Fertigung!
    Wofür wird das 1-Paar-Abonnentenanschlussmodul verwendet?



        BESCHREIBUNGEN


    Outdoor 1 pair subscriber connector unit (TP-1710-1MG) DP box is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

    The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

    It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

    • The surge voltage caused by lightning on or around the outside lines.
    • The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
    • The outside line directly collides against a 220 V power line.


    It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.





        HAUPTMERKMALE


    • Insulation Displacement Connection
    • No wire-stripping, screw and solder free
    • Reliable connections
    • Clear labeling
    • Modular design and installations
    • Gas tight connection
    • One push wire insertion
    • Robust long-term environmental stability
    • Flexible indoor and outdoor use
    • Wall or pole mountable
    • Quick mounting and installation




        SCHALTPLÄNE


    Zeichnung für Außen-Abonnentenanschlussmodul für 1 Paar für STB-Modul mit Überspannungsschutz

        ABBILDUNGEN

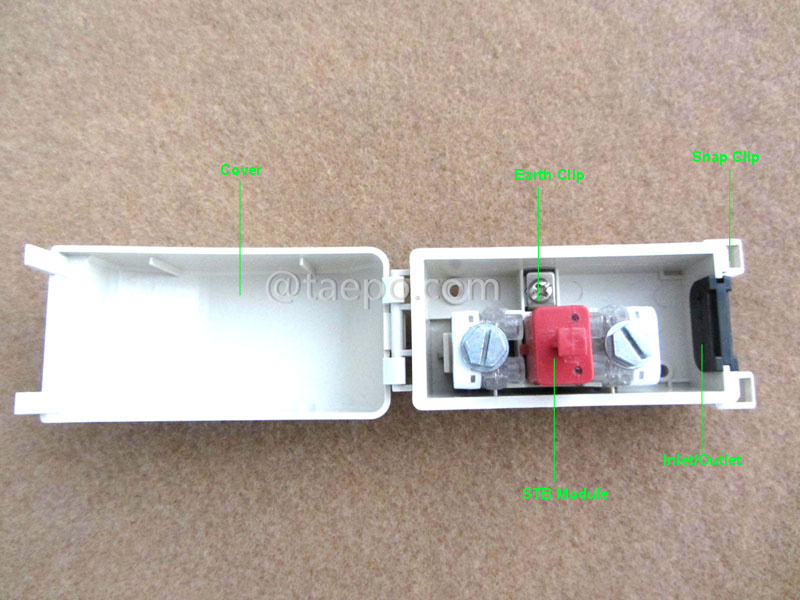

    Illustrationsbilder für Außen-Abonnentenanschlussmodul für 1 Paar für STB-Modul mit Überspannungsschutz

        VERPACKUNGSBILDER


    Verpackungsbilder für Außen-Abonnentenanschlussmodul für 1 Paar für STB-Modul mit Überspannungsschutz




        BESTELLDATEN

    Artikelnummer Beschreibungen
    TP-1710-1MG Außen-Abonnentenanschlussmodul für 1 Paar für STB-Modul, 91x46x51mm, Schnappverschluss, Kunststoffgehäuse, mit STB-Modul mit Überspannungsschutz
