Außen-Verteilungspunktbox für 10 Paare für STB-Modul, 195x191x81mm, mit Schließmechanismus, Kunststoffgehäuse, mit STB-Modul und Überspannungsschutz

TAEPO - Professioneller chinesischer Hersteller liefert 10-Paar-Verteilungspunktbox für STB-Modul mit zuverlässiger Leistung!
Was bedeutet die 10-Paar-Verteilungspunktbox?


    BESCHREIBUNGEN

Distribution point box / DP (TP-1712-10MG) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.
• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
• The outside line directly collides against a 220 V power line.


It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.

    HAUPTMERKMALE

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

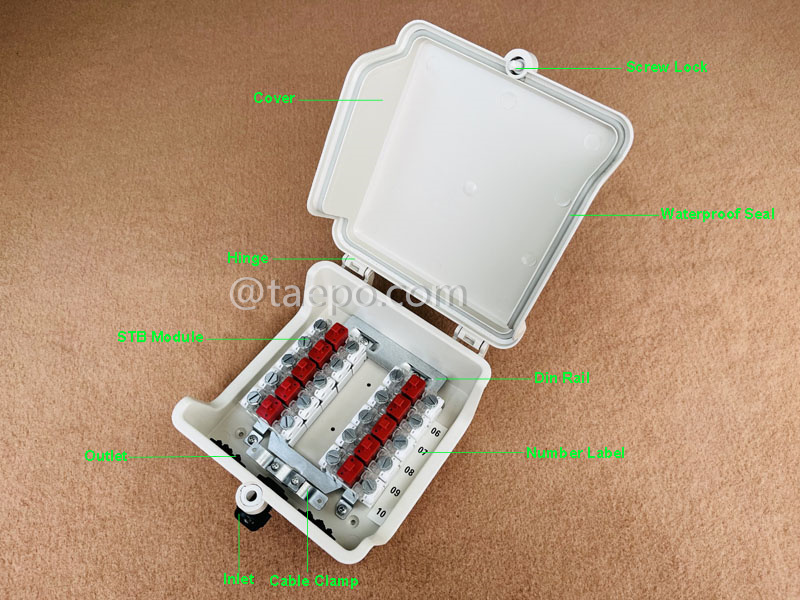

    ABBILDUNGEN

    VERPACKUNGSBILDER

    BESTELLDATEN

    ORDER DATA
